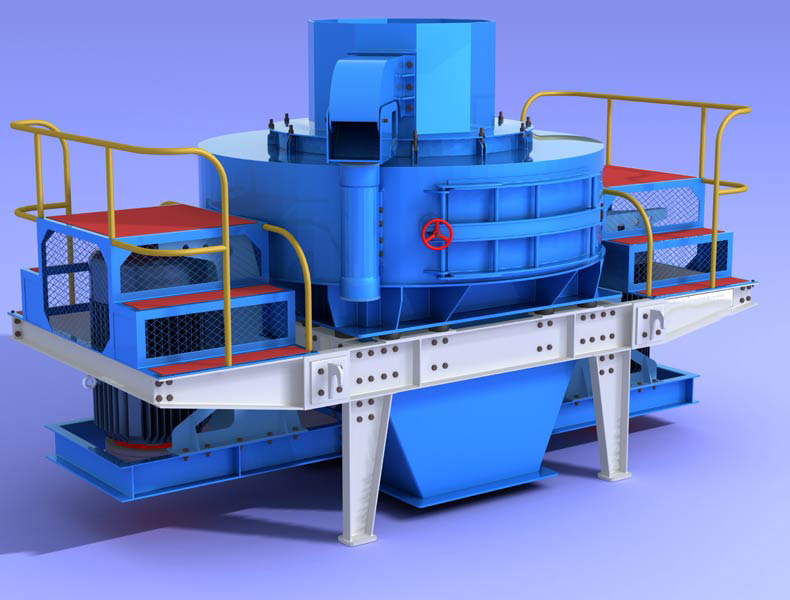

VSI Sand maker Overview
1 Brief Introduction
VSI sand making machine is a new type of sand making equipment in sand industry,with exploitation of domestic mines, the production out of the sand and gravel aggregate requirements have gradually improved, the old machine can not meet the needs of the market gradually, VSI series of high vertical shaft impact crusher is HOCHANG experts working conditions combined with China's latest design achievements, is the exclusive domestic production of high performance sand making equipment with world advanced level.

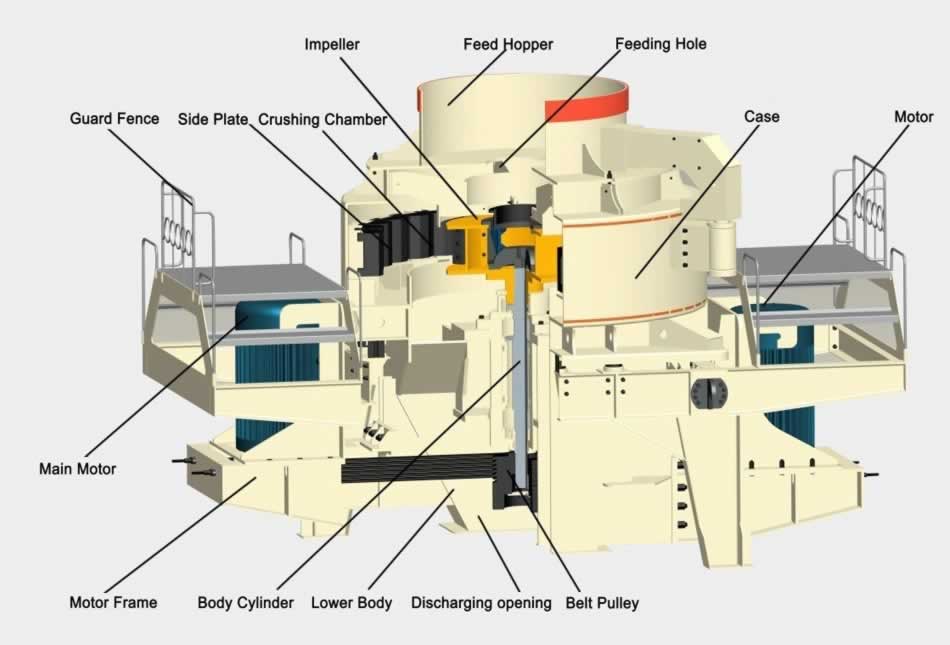

2. Structure info.(Including Base Materials)
① VSI series sand maker consists of movable upper cover, feeding pipe, steel plate, distributor , wear block, forged, bearing, motor, etc.
② Wearing parts: high manganese steel plate. Distributor of high chromium iron. Feeding pipe: high abrasive alloy material, forged:hardened and tempered chrome molybdenum steel.
3. Features of VSI Sand making machine
1. unique willow riveting technology to increase the strength and toughness of the body, reduce the machine resonance.
2. the hydraulic arm from maintenance, greatly reducing maintenance costs.
3. a variety of new Sand crushing methods to meet the needs of different materials broken.
4. Sand imported bearings, to ensure stable operation of the machine.
5. VSI sand making new dual-pump designed for normal use only one pump to work only in pressure, flow of time is less than the set value, second only to work, or when the first pump fails, the first two sets of open automatically, in order to ensure the normal operation of the host.
6. VSI sand making new new impeller design, optimize material flow under the same power 30% higher than the old type of device yield.
4. Technical parameter of VSI Sand making machine
|
Model |
VSI-7611 |
VSI-8518 |
VSI-9526 |
VSI-1140 |
Capacity
(t/h) |
Feed both at center and at sides |
120-180 |
200-260 |
300-380 |
450-520 |
|
Feed at center |
60-90 |
100-130 |
150-190 |
225-260 |
|
Max.Feeding size(mm) |
Soft material |
35 |
40 |
45 |
50 |
|
Hard material |
30 |
35 |
40 |
45 |
Rotation speed
(r/min) |
1700-1890 |
1520-1690 |
1362-1510 |
1180-1310 |
Double Motor power
(kw) |
110 |
180 |
264 |
400 |
Overall dimension (L×W×H)
(mm) |
3700×2150×2100 |
4140×2280×2425 |
4560×2447×2778 |
5000×2700×3300 |
|
Total weight (t) |
11.8 |
14.5 |
17.8 |
25.6 |
|
Power supply |
380V 50HZ |
|
Vibrating sensor |
Detect range 0.1-20mm/s chitinous and adjustable |
|
Lubrication and hydraulic station |
Double motor power |
2×0.31kw |
|
Safety assurance |
Double oil pumps assure enough oil supply:Automatic switch off with no oil stream or hydraulic temperature with cool water in summer with motor in winter. |
Overall dimension (L×W×H)
(mm) |
820×520×1270 |
|
Power of oil tank heater |
2KW |
5 Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.
