Sand dryer

【Input Moisture】: 5-75%

【Output Moisture】:1-15%

【Drum Materials】:Heat-resisting steel sheet.

【Heat Source】:Coal, oil, natural gas, BIOMASS ,timber.

【Drying Materials】:Powder Mineral, silica sand, clay, slag, sawdust etc

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?
Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2 FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT”
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7
Sand dryer Overview
1 Brief Introduction
Sand dryer is designed for sand drying as a drum dryer. Through a variety of different properties of sand, the sand dryer to optimized the design for a wide range of low moisture content. The drying result is excellent. Our sand dryer is widely used in sand and building sand drying, especially successfully applied to the dry mortar, construction, new materials and other industries.

2. Structure info.(Including Base Materials)
Sand dryer is an integrated unit consisting of a furnace to produce hot air, a rotary drum having 3 cylinders, one set of rigid supporting roll of the drum, one set of driving system of the drum, a cyclone, and a fan.
As a special design, the drying can take place in the two inner tubes, whilst cooling is performed in the outer shell.
1) Rotating cylindrical tube:boiler steel(G20)
2) Riding ring:cast steel ZG45#,surface hardness not less than HB170
3) Trunnion rollers:cast steel(ZG35)
3. Advantages of Product
  2014-01:four sets 2.0*6 three drum dryers for drying sand in Malaysia
2015-04:two sets 2.2*5 three drum dryers for drying dry-mixed mortar in Australia
   2015-07:one set 3.2*7 three drum dryer for drying sand in Mongolia
   2016-08:one set 2*4.5 three drum dryer for drying clay in Grace
   2016-11:one set 2.7*6.5 three drum dryer for drying slag in Italy

4. Quality guarantees
① …Utilization ratio,Product yield ratio Products,Qualification Ratio 100%.
② … Process inspection qualification rate 98%
③ …  Products performance test qualification rate 100%
④ … Staff position competition specialized skill 100%
5. Features of Sand dryer

1. The needed investment is only 1/6 of foreign import product.

2. The final moisture of the materials is ensured to be below 0.5%, making it the first choice of dry-mixed mortar and slag powder production line.

3. The self heat preservation heat efficiency of the cylinder can reach as high as over 70%, thus improving the heat efficiency by 35%.

4. The fuel can be coal, gas and oil, and it can be used for drying lump, granulous and powdery materials whose granularity is below 20mm.

5. Compared with monocular dryer machine, its floor space is reduced by about 50%, infrastructure investment reduced by about 50% and electricity consumption reduced by 60%.

6. The needed final water content index can be easily regulated according to customers’ requirement.

7. The temperature of the air out is low and the service life of the dust removing equipment is long.

8. It needs no rack wheel and pinion driving, but uses riding wheel for transmission.

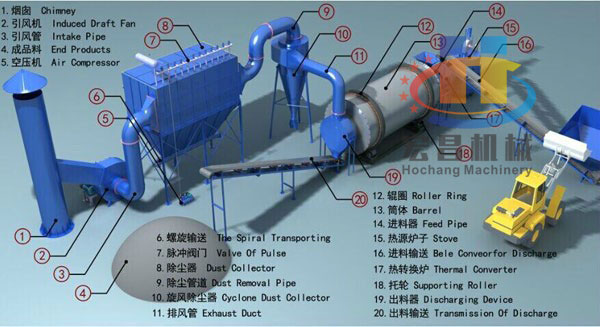

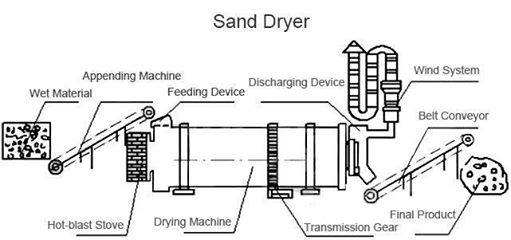

6. Sand dryer FLOW CHART

7. Technical parameter of Sand dryer

Model	Cylinder diameter (m)	Cylinder length (m)	Cylinder volume (CBM)	Rotation speed (r/min)	Highest inlet air temperature (℃)	Capacity (t/h)	Power (kw)
2*4.5m	2	4.5	14.13	4—10	700—750℃	13—18	5.5*2
2.2*5m	2.2	5	18.99	4—10	700—750℃	15—23	7.5*2
2.5*6m	2.5	6	29.43	4—10	700—750℃	20—28	5.5*4
2.7*6.5m	2.7	6.5	37.19	4—10	700—750℃	24—33	7.5*4
3.0*6.5m	3.0	6.5	45.92	4—10	700—750℃	35—40	11*4
3.2*7m	3.2	7	56.27	4—10	700—750℃	40—60	15*4
3.6*8m	3.6	8	81.39	4—10	700—750℃	55—75	18.5*4
4.2*8m	4.2	8	110.78	4—10	700—750℃	70—120	22*4

8. Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.
