Three drum dryer

【Effective Volume】:16.63-81.38m³

【Capacity】:20-70t/h

【Heat Source】:Coal, oil, natural gas, BIOMASS ,timber.

【Drying Materials】:Powder Mineral, coal, silica sand, clay, slag, sawdust etc

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?
Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2 FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT”
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7
Three cylinder dryer Overview
1 Brief Introduction
Three-drum dryer is also called three-cylinder dryer and triple-drum dryer. It has improved internal structure of monocular dryer, which prolongs the time of pre-drying of wet materials and wet materials in the machine, thus improving 50% to 80% of production capacity compared with original monocular dryer.
2. Structure info.(Including Base Materials)
Three drum dryer is an integrated unit consisting of a furnace to produce hot air, a rotary drum having 3 cylinders, one set of rigid supporting roll of the drum, one set of driving system of the drum, a cyclone, and a fan.
As a special design, the drying can take place in the two inner tubes, whilst cooling is performed in the outer shell.
1) Rotating cylindrical tube:boiler steel(G20)
2) Riding ring:cast steel ZG45#,surface hardness not less than HB170
3) Trunnion rollers:cast steel(ZG35)
3. Advantages of Product
Case info. or covered business area
Successful cases in 2014:
   2014-01:four sets 2.0*6 three drum dryers for drying sand in Malaysia
2014-04:two sets 2.2*5 three drum dryers for drying dry-mixed mortar in Australia
   2014-07:one set 3.2*7 three drum dryer for drying sand in Mongolia
   2014-08:one set 2*4.5 three drum dryer for drying clay in Grace
   2014-11:one set 2.7*6.5 three drum dryer for drying slag in Italy
4. Quality guarantees
① …Utilization ratio,Product yield ratio Products,Qualification Ratio 100%.
② … Process inspection qualification rate 98%
③ …  Products performance test qualification rate 100%
④ … Staff position competition specialized skill 100%
5. Features of Three cylinder dryer

1. The needed investment is only 1/6 of foreign import product.

2. The final moisture of the materials is ensured to be below 0.5%, making it the first choice of dry-mixed mortar and slag powder production line.

3. The self heat preservation heat efficiency of the cylinder can reach as high as over 70%, thus improving the heat efficiency by 35%.

4. The fuel can be coal, gas and oil, and it can be used for drying lump, granulous and powdery materials whose granularity is below 20mm.

5. Compared with monocular dryer machine, its floor space is reduced by about 50%, infrastructure investment reduced by about 50% and electricity consumption reduced by 60%.

6. The needed final water content index can be easily regulated according to customers’ requirement.

7. The temperature of the air out is low and the service life of the dust removing equipment is long.

8. It needs no rack wheel and pinion driving, but uses riding wheel for transmission.

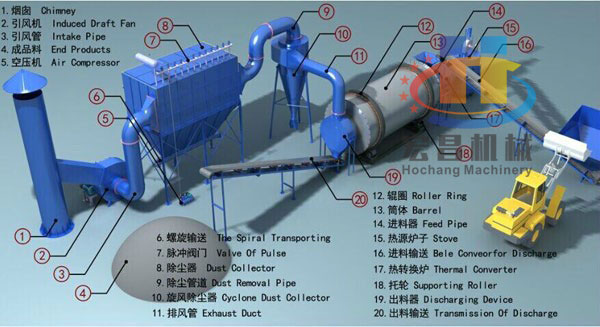

6. Three cylinder dryer FLOW CHART

7. Technical parameter of rotary dryer

Model	Cylinder diameter (m)	Cylinder length (m)	Cylinder volume (CBM)	Rotation speed (r/min)	Highest inlet air temperature (℃)	Capacity (t/h)	Power (kw)
2*4.5m	2	4.5	14.13	4—10	700—750℃	13—18	5.5*2
2.2*5m	2.2	5	18.99	4—10	700—750℃	15—23	7.5*2
2.5*6m	2.5	6	29.43	4—10	700—750℃	20—28	5.5*4
2.7*6.5m	2.7	6.5	37.19	4—10	700—750℃	24—33	7.5*4
3.0*6.5m	3.0	6.5	45.92	4—10	700—750℃	35—40	11*4
3.2*7m	3.2	7	56.27	4—10	700—750℃	40—60	15*4
3.6*8m	3.6	8	81.39	4—10	700—750℃	55—75	18.5*4
4.2*8m	4.2	8	110.78	4—10	700—750℃	70—120	22*4
