Rotary dryer

【Effective Volume】:1.7-230m³

【Power】:3-90kW

【Heat Source】:Coal, oil, natural gas, timber,biomass

【Application】:Drying the concentrate by metallic and non-metallic magnetic separation,flotation,gravity concentration ,cement clay, coal slime, ore, steel slag, quartz sand, kaolin, bentonite, animal manure,gypsum,vinasse ,palm fiber,pks,sawdust etc.

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?

Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2 FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT”
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7
Rotary dryer Overview
1 Brief Introduction
Rotary dryer can be widely used to dry materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical, such as metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc. Wide supply scope and simple operation are the main features of it.
2. Structure info.(Including Base Materials)
Rotary dryer mainly consists of rotating cylindrical tube,riding ring,ring gear,lifting flights,trunnion rollers,fan,dust collector.
1) Rotating cylindrical tube:boiler steel(G20)
2) Ring gear:cast steel(ZG45)
3) Trunnion rollers:cast steel(ZG35)
4) Transmission part:Include motor,reducer,coupling,small gear,bearing support.
5) Surface paint: anti-rust paint.
6) Dust removing system:cyclone;ceramic multibarrel dust collector,pulse bag-type collector
3. Advantages of Product
ü Case info. or covered business area
Hochang Machinery has rotary dryer production line installed throughout the world in areas such as Indonesia,Thailand,Bulgaria,Turkey,Hungary,Malaysia,Korea,India,Iran,Mexico,Netherlands,Nigeria,Vietnam,Panama etc.
4. Quality guarantees
① …Utilization ratio,Product yield ratio Products,Qualification Ratio 100%.
② … Process inspection qualification rate 98%
③ … Products performance test qualification rate 100%
④ … Staff position competition specialized skill 100%
5. Features of Rotary dryer

1. The roller of rotary dryer machine is made of light plate's stainless steel which has excellent heat resistance, the inner-wall smooth, can reduce the materials' wear and tear.

2. Efficient radiator, and with a reasonable lead air duct, so that the hot air can direct contact with materials, greatly improving the drying efficiency, while saving energy.

3. Using computer control, we can set different rotary drying temperature and rotary drum drying time according to the drying requirements.

4. Major diameter material entrance facilitates the inlet and outlet of materials and greatly improves the drying efficiency.

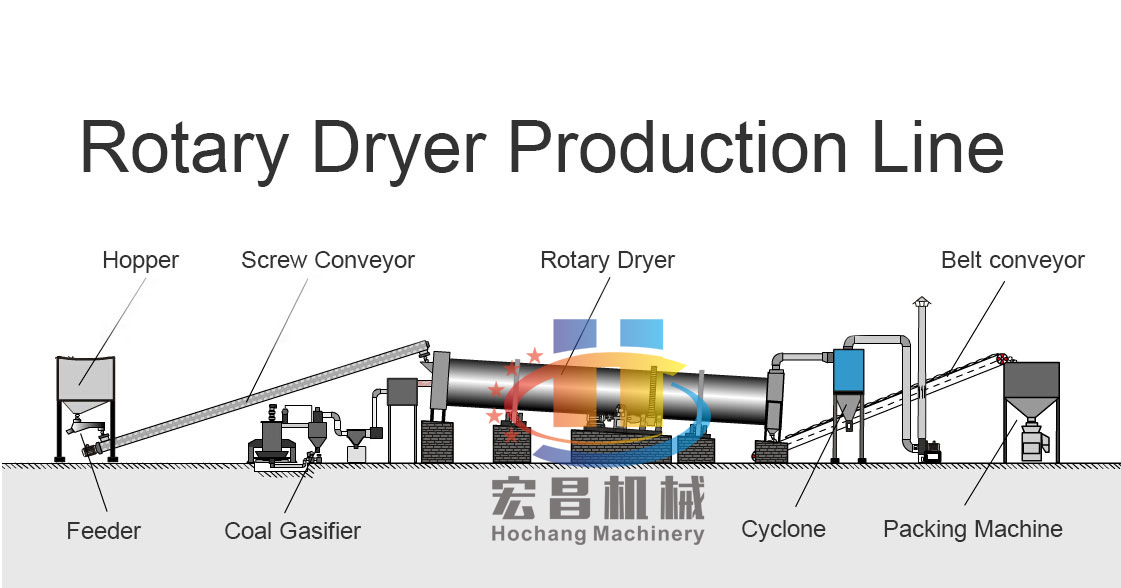

6. Rotary dryer FLOW CHART

7. Technical parameter of rotary dryer

Type (mm)	Gradient (%)	Rotational speed (r/min)	Inlet air temperature ( ºC )	Power (kw)	Capacity (t/h)	Weight (t)
φ600x6000	3-5	3-8	≤700	3	0.5-1.5	2.9
φ800x8000	3-5	3-8	≤700	4	0.8-2.0	3.5
φ800x10000	3-5	3-8	≤700	4	0.8-2.5	4.5
φ1000x10000	3-5	3-8	≤700	5.5	1.0-3.5	5.6
φ1200x10000	3-5	3-8	≤700	7.5	1.8-5	14.5
φ1200x12000	3-5	3-8	≤700	11	2-6	14.8
φ1500x12000	3-5	2-6	≤800	15	3.5-9	17.8
φ1800x12000	3-5	2-6	≤800	18	5-12	25
φ2200x12000	3-5	1.5-6	≤800	18.5	6-15	33
φ2200x18000	3-5	1.5-6	≤800	22	10-18	53.8
φ2200x20000	3-5	1.5-6	≤800	30	12-20	56
φ2400x20000	3-5	1.5-5	≤800	37	18-30	60
φ3000x20000	3-5	1.5-5	≤800	55	25-35	78
φ3000x25000	3-5	1.5-5	≤800	75	32-40	104.9

8. Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.

Equipments Included in the Production Line
