Bentonite dryer

【Effective Volume】:4-230m³

【Power】:4-110kW

【Heat Source】:Coal, oil, natural gas, biomass,timber.

【Drying Materials】:Sawdust, Kaolin,Bentonite,palm shell,wood chips,bagasse,straw,vinasse,slag,coal powder, mining powder,clay,sand,limestone and so on.

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?
Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2 FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT”
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7
Bentonite dryer Overview
1 Brief Introduction
Bentonite dryer is a type of drying equipment employed to reduce or minimize the liquid moisture content of the material it is handling by bringing it into direct contact with heated gas.The moisture content in the dried bentonite normally is under 10%. Bentonite is strict,so add the Dispersioning device.Bentonite dryer can be widely used to dry materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical, such as metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc. Wide supply scope and simple operation are the main features of it.
2. Structure info.(Including Base Materials)
Bentonite dryer mainly consists of rotating cylindrical tube,riding ring,ring gear,lifting flights,trunnion rollers,fan,dust collector.
1) Rotating cylindrical tube:boiler steel(G20)
2) Ring gear:cast steel(ZG45)
3) Trunnion rollers:cast steel(ZG35)
4) Transmission part:Include motor,reducer,coupling,small gear,bearing support.
5) Surface paint: anti-rust paint.
6) Dust removing system:cyclone;ceramic multibarrel dust collector,pulse bag-type collector
3. Advantages of Product
Hochang Machinery bentonite dryer has successful production sites in Greece,Turkey,Russia,South Africa,Vietnam.
4. Quality guarantees
① …Utilization ratio,Product yield ratio Products,Qualification Ratio 100%.
② … Process inspection qualification rate 98%
③ … Products performance test qualification rate 100%
④ … Staff position competition specialized skill 100%
5. Features of Bentonite dryer

1. The roller of bentonite dryer machine is made of light plate's stainless steel which has excellent heat resistance, the inner-wall smooth, can reduce the materials' wear and tear.

2. Efficient radiator, and with a reasonable lead air duct, so that the hot air can direct contact with materials, greatly improving the drying efficiency, while saving energy.

3. Using computer control, we can set different rotary drying temperature and rotary drum drying time according to the drying requirements.

4. Major diameter material entrance facilitates the inlet and outlet of materials and greatly improves the drying efficiency.

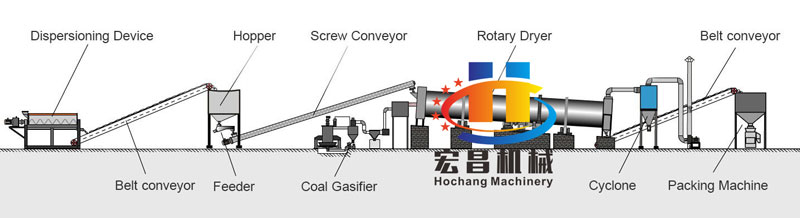

6. Bentonite dryer FLOW CHART

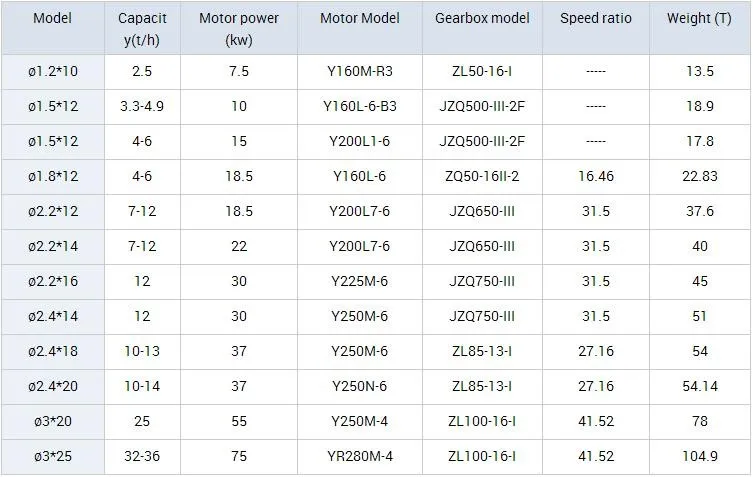

7. Technical parameter of Bentonite dryer

8. Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.
