Palm fiber dryer

【Effective Volume】:4-230m³

【Power】:4-110kW

【Heat Source】:Coal, oil, natural gas, biomass,timber.

【Drying Materials】:PKS ,coconut coir,

EFB fiber (empty fruit bunch fiber),Sawdust, Kaolin,Bentonite,palm shell,wood chips,bagasse,straw,vinasse,slag,coal powder, mining powder,clay,sand,limestone and so on.

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?
Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2 FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT”
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7
Palm fiber dryer Overview
1 Brief Introduction
Palm fiber dryer is a type of drying equipment employed to reduce or minimize the liquid moisture content of the material it is handling by bringing it into direct contact with heated gas.The moisture content in the dried palm fiber normally isunder 10%. Palm fiber dryer is a type of drying equipment employed to reduce or minimize the liquid moisture content of the palm fiber and let the fiber easy to be bailed and storaged.

EFB fiber (empty fruit bunch fiber), as the by-product of palm oil extraction, could be recycled for green industry:

Mattress, cushion, sofa, etc.
EFB pellet
Erosion control of desert
Paper & pulp
Filtration material
Fiber board

It needs several processes to get clean, dry palm fiber: shredding, separating, screening, drying. To avoid over-heating & fire risk, palm fiber dryer works at 120-220°C. It takes about 10-20 minutes to reduce moisture from 50% to 10%. Low temperature, short drying time ensures high quality of palm fiber.

In Southeast Asian countries like Indonesia, Malaysia, Thailand, Sri Lanka, Vietnam, there are many companies that have need for palm fiber dryer. We have rich experience in rotary dryer design, manufacturing, installation. Zhengzhou Hochang Machinery would give you the best palm fiber dryer based on your requirement.

This rotary drying system can be used to dry coconut coir, too.
2. Structure info.(Including Base Materials)
Palm fiber dryer mainly consists of rotating cylindrical tube,riding ring,ring gear,lifting flights,trunnion rollers,fan,dust collector.
1) Rotating cylindrical tube:boiler steel(G20)
2) Ring gear:cast steel(ZG45)
3) Trunnion rollers:cast steel(ZG35)
4) Transmission part:Include motor,reducer,coupling,small gear,bearing support.
5) Surface paint: anti-rust paint.
6) Dust removing system:cyclone;ceramic multibarrel dust collector,pulse bag-type collector
3. Advantages of Product
Hochang Machinery palm fiber dryer has successful production sites in malaysia.
4. Quality guarantees
① …Utilization ratio,Product yield ratio Products,Qualification Ratio 100%.
② … Process inspection qualification rate 98%
③ … Products performance test qualification rate 100%
④ … Staff position competition specialized skill 100%
5. Features of Palm fiber dryer

1. The roller of palm fiber dryer machine is made of light plate's stainless steel which has excellent heat resistance, the inner-wall smooth, can reduce the materials' wear and tear.

2. Efficient radiator, and with a reasonable lead air duct, so that the hot air can direct contact with materials, greatly improving the drying efficiency, while saving energy.

3. Using computer control, we can set different rotary drying temperature and rotary drum drying time according to the drying requirements.

4. Major diameter material entrance facilitates the inlet and outlet of materials and greatly improves the drying efficiency.

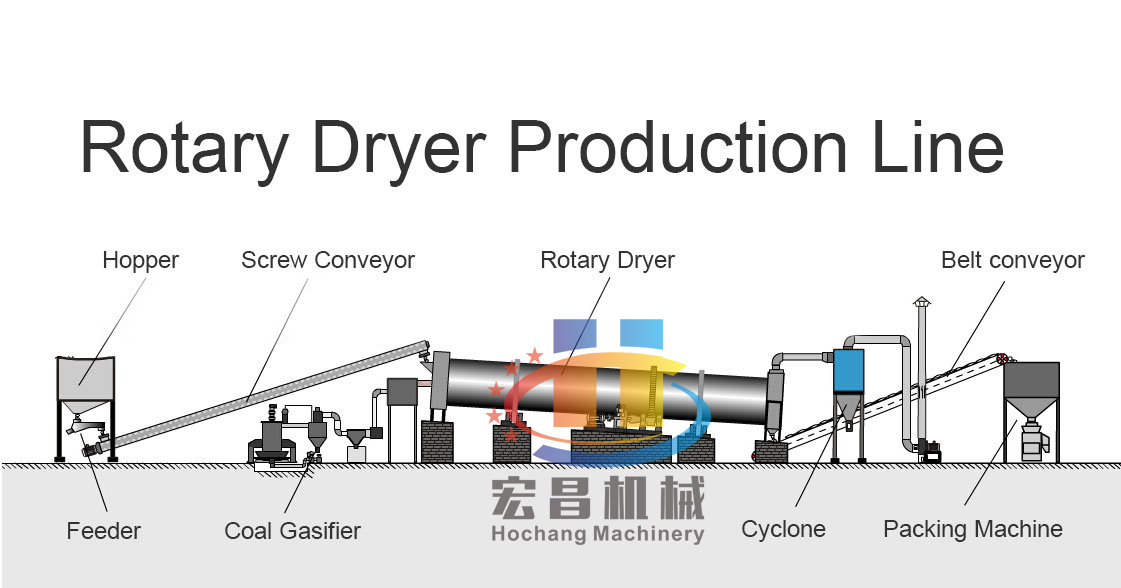

6. Palm fiber dryer FLOW CHART (Contact me design the more accurate flow chart for you)

7. Technical parameter of Palm fiber dryer

8. Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.

Equipments Included in the Production Line
