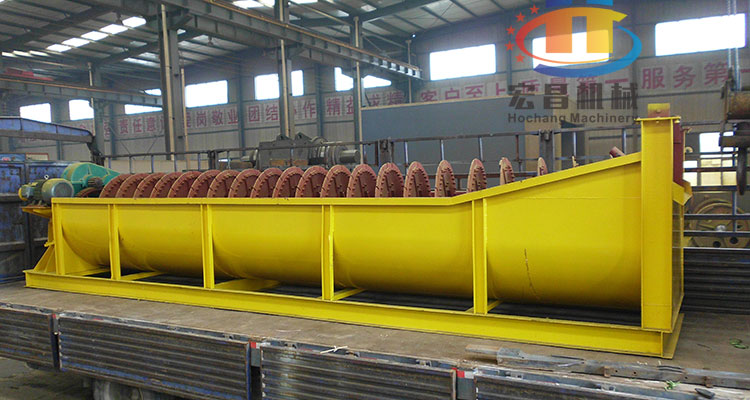

Spiral sand washing machine Overview
1 Brief Introduction
Hochang Spiral sand washing machine is suitable for construction sites, sand factory, hydro power station, concrete dam site, post and telegraph pole factory. The required users’ sand and casting with "70" sand, glass quartz sand, oil filling pressure sand washing, grading and dehydration. Sand washing machine according to 15° tilt arrangement, the lower of the water tank is composed of three side weir plates formed by sedimentation tank. Screw head not into the settling tank, spiral by motor through reducer drive continuous rotation, clean water into the porous plate from the bottom of the tank. This equipment has three functions: cleaning, dewatering, classify.

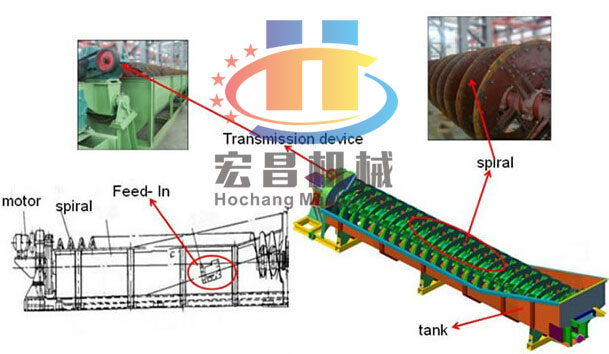

2. Structure info.(Including Base Materials)
① LSX Series Spiral Sand Washer is consists of auger shaft, bearing, steel plate groove, motor, etc.
② High manganese steel plate.
3. Features of Spiral sand washing machine
1. Spirochetes is long, good sealing system.
2. Simple structure, strong processing ability.
3. Sand with low water content, low mud content.
4. Reasonable structure, convenient maintenance.

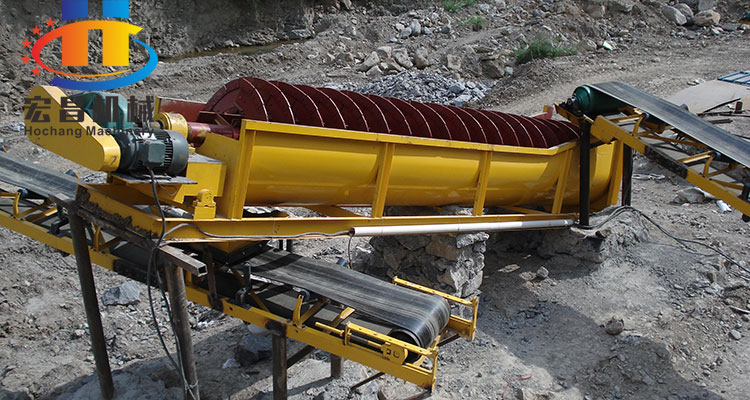

4. Spiral sand washing machine working spot
5. Technical parameter of Spiral sand washing machine
|
Model |
Spiral diameter （mm） |
Speed of Spira l(r/min) |
Capacity |
Slope (°) |
Powe r(KW) |
Weight (t) |
|
Sand Return (t/h) |
Overflow (t/h) |
|
FL-5 |
500 |
8-15.5 |
143-2611 |
32 |
12-18 |
3 |
1.9 |
|
FL-7 |
750 |
4.5-10 |
256-564 |
65 |
12-18 |
3 |
2.7 |
|
FL-10 |
1000 |
1.6-7.4 |
473-1026 |
85 |
12-18 |
5.5 |
4.1 |
|
FL-12 |
1200 |
5-7 |
1170-1600 |
155 |
12-18 |
5.5 |
7.5 |
|
FL-15 |
1500 |
2.5-6 |
70-115 |
235 |
12-18 |
7.5 |
10.5 |
|
FL-18 |
1800 |
2.5-6 |
100-190 |
310
|
12-18 |
11 |
17.1 |
|
FL-20 |
2000 |
2.5-6 |
160-230 |
400 |
12-18 |
15 |
19.3 |
|
FL-24 |
2400 |
3.64 |
160-230 |
580 |
12-18 |
18.5 |
26 |
