XSD Series Wheel type Sand Washer

【Capacity】:15-180t/h

【Feed Size】:«10mm

【Power】:5.5-15kW

【Application】:quarry, mine, building material, chemical industry, water and concrete mixer, etc

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?

Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2 FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT”
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7

Wheel sand washing machine Overview
1 Brief Introduction
XSD Sand Washing Machine is a kind of water washing style equipment to match sand making machine. It can reduce the dust and stone powder which mix with the final sand so Sand Washing Machine can improve the quality of the sand. Sand Washing Machine can ensure cleaning and dewatering effect because of novel-style sealing structure and reliable transmission device.

2. Structure info.(Including Base Materials)

①　LSX Series Spiral Sand Washer is consists of transmission device, Impeller ,bearing, motor ,etc.
②　Impeller: high abrasive materials, complete transmission device are all separated from water.

3. Features of Wheel sand washing machine

1. Long life of bearing.
2. Little loss for medium-sized or fine sand and stone powder.
3. Almost no easily-damaged parts.
4. Longer working life.
5. Easy maintenance.

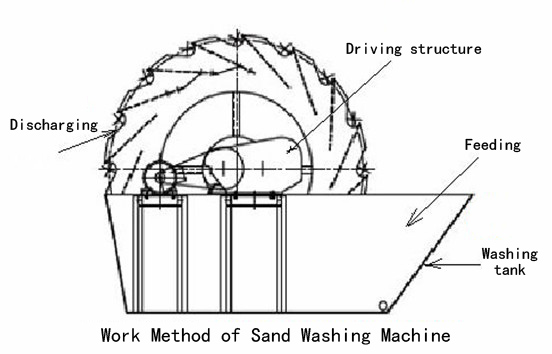

4. Working Principle of Wheel sand washing machine

5. Technical parameter of Wheel sand washing machine

Specification	XS2200	XS2600	XS2900	XS3500
Wheel bucket diameter (mm)	2200	2600	2900	3500
Rotation Speed (r/min)	1-2	1-2	0.8-1.5	0.8-1.2
Processing capacity (t/h)	15-30	20-50	50-100	120-200
Motor power (kw)	8P 4	8P 5.5	8P 7.5	8P 11
Total weight (kg)	4300	5600	8100	9900
Dimensions (L×W×H) (mm)	3150×1910×2280	3520×2390×2690	3820×2640×3200	4420×2930×3800

6 Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.

Equipments Included in the Production Line
