PXJ Series fine crusher

【Feed Size】:≤150mm-≤180mm

【Capacity】:10-310t/h

【Power】:55-315KW

【Application】:Fine crushing limestone, foam cement plate, concrete block etc.

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?

Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2 FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT”
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7

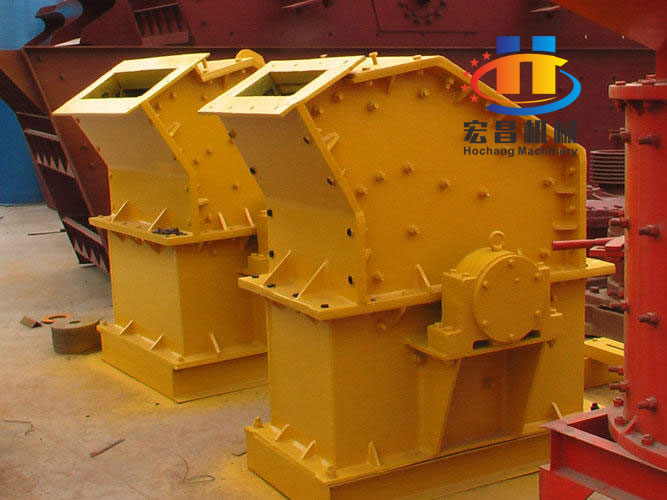

PXJ Fine crusher Overview
1 Brief Introduction of fine crusher
Hochang Fine Crusher has many advantages, like reliable performance, easy structure, convenient maintenance, big capacity, long life hammer. It is widely used in granite, basalt, limestone, river gravel, cement clinker, quartz, iron ore, bauxite, etc. It is also used in road, railway, water conservancy, airport, construction, cement, refractories, metallurgy, etc.
2. Structure info.(Including Base Materials)

①　PXJ Series Sand maker consists of hammer, wheel drum, liner, rotor,etc.
②　Hammer and liner: High manganese steel , Mn13, Mn18, and so on.

3. Features of PXJ fine Crusher

1. Designed according to the standard of highway/railway material using, nice shape, the content of flakiness<12%

2. The discharge port of impact crusher is large, the crushing cavity is high, and it is much more widely used for materials. Finished products are cubes without tension crack, nice granular shape, can comply with kinds of gravels’ grade standard.

3. Simple structure, easy maintenance

4. Equipped with hydraulic opening device, easy to replace the blow bar

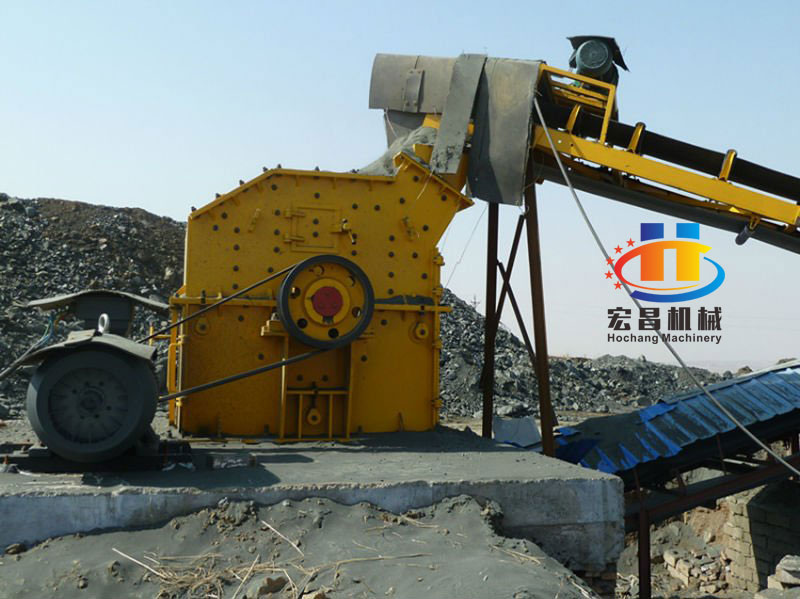

4. PXJ fine Crusher WORKING SPOT

5. Technical parameter of PXJ fine Crusher

PXJ tertiary impact crusher	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)
Specification	800×400	800×600	800×800	1010×1010	1200 ×1200	1400 ×1400	1600 ×1600	1800 ×1800
Feed opening size(mm)	400×185	500×250	550×300	1000×350	1200 ×450	1500 ×500	1600 ×550	1800 ×800
Feeding size (mm)	<120	<180	<180	<180	<180	<190	<190	<190
Discharging size (mm)	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10
Adjustable range of discharge opening (mm)	5-50	5-50	5-50	5-50	5-50	5-50	5-50	5-50
Cement Clinker(t/h)	10-30	18-40	20-45	25-55	35-90	50-150	85-210	125-270
Limestone(t/h)	18-45	23-55	28-65	35-75	45-100	50-150	95-260	140-310
Power(kw)	4P 37	4P 37	4P 45	4P 55	6P 110	6P 160	4P 250	4P 315
Theoretical weight(t)	3.9	4.5	6	10.5	14.4	22	35

6 Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.
