Rotating Die Wood powder pellet mill

Rotating Die Wood powder pellet mill

Power :Motor
Pellet size :Choice

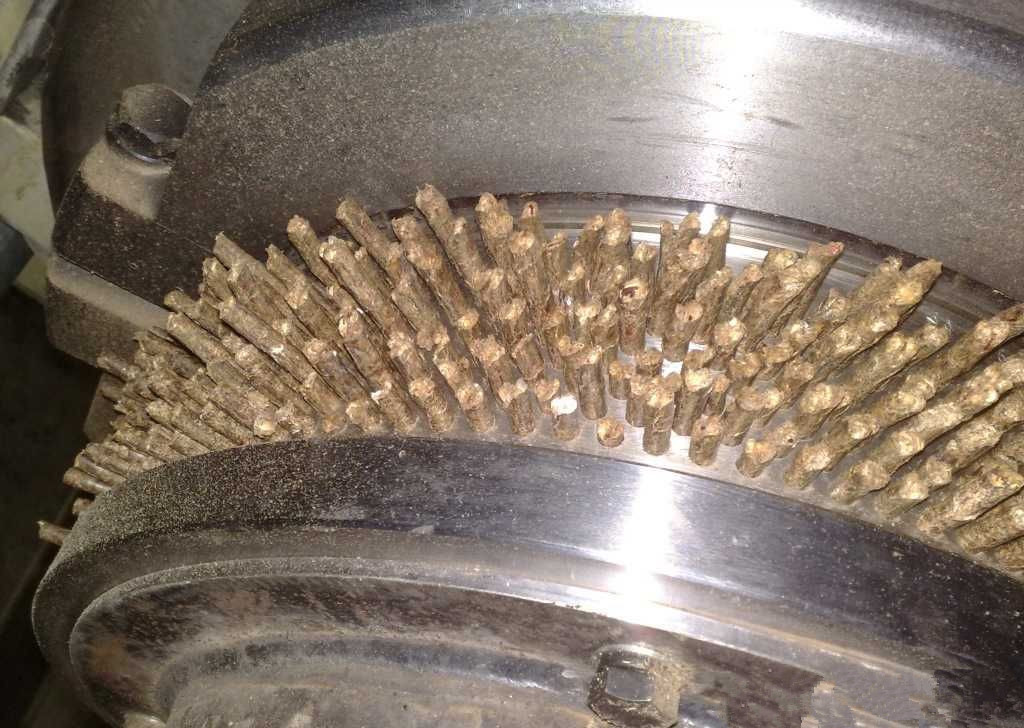

Wear parts:Die and Roller

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Enter email to free download PDF

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

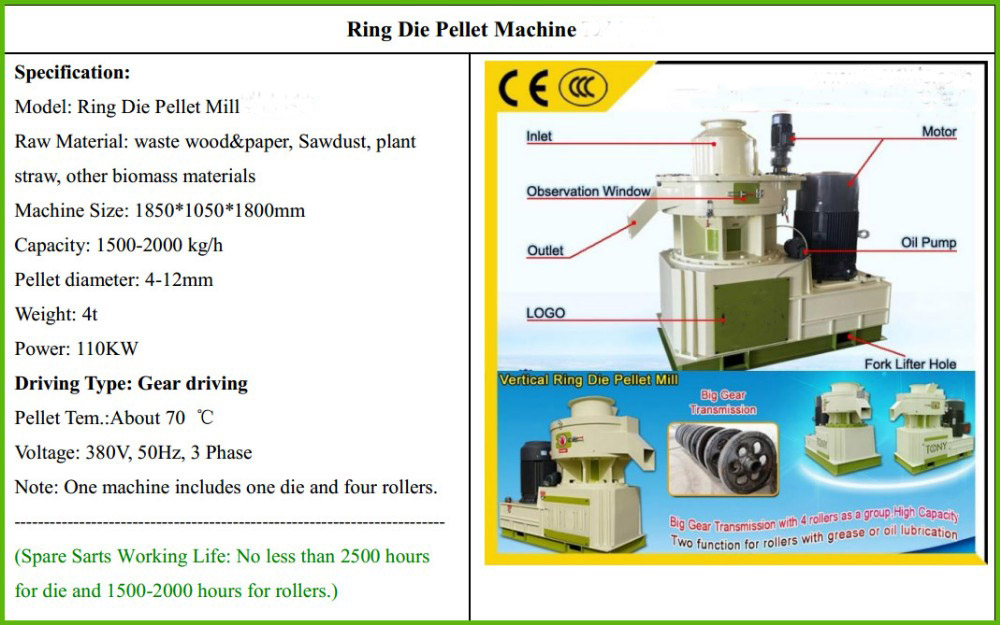

Introduction of Rotating die wood pellet mill

This rotating die wood powder pellet mill is used to pellet the mixed feedstuff powder within one time. During the process ,there is no need to add water ,no need to dry the materials ,the machine can reach 70 centigrade naturally which will gelatinize starch The products can be stored for a long time .It mainly applies to aquaculture, fish, ducks, chicken, shrimp, pigs, cattle, sheep, as well as industrial processing particles.

Features of Rotating die wood pellet mill

1. Pellet Mill can be divided into Flat tie type and Ring die type.

2. Pellet Mill can be derived by Motor and Diesel.

3. Pellet Mill can be used for produce Feed Pellets and Biomass Pellets and etc.

Usage of Rotating die wood pellet mill

1. Pellet Mill can be designed to produce animal feed pellets and high-density biomass fuel pellets.

2. Animal feed pellets Raw materials are sawdust, straw, rice husk, bark, etc and the pellets are easily stored and transported.

3. Biomass pellets are widely used in house- warming and power generation.

4. Biomass pellets an alternative fuel for non-renewable energy like coal, oil.

5. Biomass pellets are a kind of clean and renewable energy with advantages of energy saving and carbon emission reducing.

Requirements for raw materials

Size: Less than 5mm  (All the raw materials must be crushed into sawdust before going
to wood pellet machine.If not, you may need a wood chipper, wood crusher.)

Moisture: Generally, 10-15%  is best for producing good quality wood pellet

Technical parameter of Rotating die wood pellet mill

Model Power(kw) Capacity(T/H) Weight(T) Size(MM)

TYJ450-II

55+0.55 0.8-1.2 3.5 1900*900*1600
TYJ550-II 110+0.55 1.5-2.2 6.5 2200*1200*2000
TYJ680-II 160+0.55 2-3 7 2300*1400*2100
TYJ860-II 220+0.55 2.5-3.5 14 2550*1500*2200
TYJ980-II 315+0.55 3.5-5.5 18 2800*1600*2500
