Shaving/shaking table

【Type】:6-S

【Feed Size】:0.15-2mm

【Capacity】:0.3-1.8 t/h

【Application】:Industrial fields like ore beneficiation plant. To separate materials including tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanic iron and coal.

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?
Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2 FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT”
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7
Shaving table Overview
1 Brief Introduction
Shaking table is one of most commonly used mineral beneficiation equipment,although the processing ability based on unit area of shaking table is low,but its effective particles size sorting could be up to 0.037mm limit,the interval grill of table surface is very clear and machine operating is easy.Shaking table could continuously sort concentrate ore,second-grade ore and tailings,it is very important ore sorting equipment.Shaking table is made of machine head,motor,adjusting gradient device,bed,bunker,water tank,rifle bar and lubrication system.
2. Structure info.(Including Base Materials)

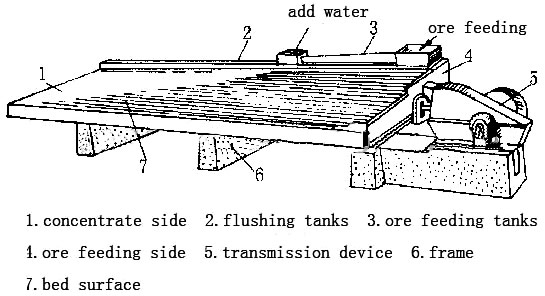

The shaving table consists of machine head, motor, adjustable slope structure, bed surface, feeding chute, water tank, bed strip and lubrication system.
3. Features of Shaving table

1. Vibrating frequency: 8-20 Hz

2. Plate size: 10' x 8' Heavy channel

3. Power required: 2 H.P

4. Material: Iron/Steel

4. Technical parameter of Shaving table

Name		Grit concentrator table	Fine sand concentrator table	Sludge concentrator table
Bed surface Dimensions	Length (mm)	4450	4450	4450
	Driving part Width (mm)	1855	1855	1855
	Concentrate part Width (mm)	1546	1546	1546
Max.feeding size(mm)		2	0.5	0.15
Feeding amount (t/d)		30-60	10-20	15-25
Feeding thickness (%)		25-30	20-25	15-25
Stroke (mm)		16-22	11-16	8-16
Frequency (f)		45-48	48-53	50-57
Bed surface Water quantity (t/d)		80-150	30-60	10-17
Bed surface Horizontal obliquity(°)		2.5-4.5	1.5-3.5	1-2
Bed surface Portrait obliquity(%)		1.4	0.92	----
Table board corner(°)		32-42	40	42
Concentrating area(㎡)		7.6	7.6	7.6
Bed surface Length ratio		2.6	2.6	2.6
Shape of side-bed surface		Rectangle	Zigzag	Triangle
Motor power(kw)		1.1	1.1	1.1
Transmission device		Eccentricity

5 Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.
