Spiral chute

【Feed Size】:0.02-4mm

【Capacity】:0.5-40t/h

【Processible Materials】:Iron ore, titanic iron ore, chromate iron ore, brasses, zirconite, rutile, monazite, tungsten ore, gold, silver, copper, and pyrite and niobium ore.

【Application】:Ore beneficiation plant.

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?
Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2 FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT”
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7
Spiral chute Overview
1 Brief Introduction
Hochang Spiral Chute is suitable for sorting for gold mine, silver mine, alluvial gold mine, lead-zinc mine, copper mine, tin mine, titanium iron mine, pyrite mine, hematite, limonite, chromite, ferberite, tungsten, tantalum-niobium, colliery, monazite, sapphire , barites, rutile, zircon, etc.Spiral Chute is high efficient equipment for sorting ferrous, nonferrous, nonmetallic mine and minor metal mine.
2. Structure info.(Including Base Materials)

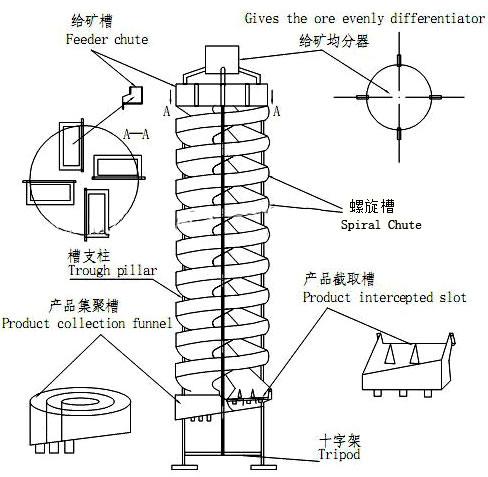

Spiral chute is made up of six parts: feeding distributor, feeding chute, spiral chute, product cutting and receiving chute, receiving bucket and chute support.
It is made of the fiberglass lined with wear-resistant polyurethane and corundum cover.
3. Features of Spiral chute

Its handling capacity is big. It is high efficient, concentration ratio and recovery rate. Steel spiral chute is reliable. Besides, it has the following advantages: light weight, moisture, rust, corrosion, no noisy, strong adaptation to fluctuations in the amount, concentration, grain size of the ore.

4. Technical parameter of Spiral chute

Model	DL2000	DL1500	LL1200	LL900
External diameter (mm)	2000	1500	1200	900
Inner diameter (mm)	360	250	220	180
Screw distance (mm)	1200	900-675	720/540	540/360
Ratio (scroll distance/diameter)	0.6	0.6	0.6/0.45	0.6/0.4
Transverse obliquity (°)	9°	9°	9°	9°
Star	2-4	2-4	2-4	2-4
Turn	3.5	4	4/5	4/5
Feeding size (mm)	0.4-1	0.03-1	0.03-0.3	0.03-0.3
Feeding thickness (%)	20-45	30-45	30-50	30-50
Processing capacity (t/h)	15-40	8-16	4-6	2-3
Area (㎡)	5.7	3.3	2	1.2
Height (mm)	6.6-8	5.5	5.23	3.2

5 Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.
