Magnetic separator

【Feed Size】:0-3mm

【Capacity】:10-220t/h

【Processible Materials】:Magnetite, magnetic pyrite, roasted ore, titanic iron ore, hematite, limonite, siderite, wolframite, tantalum-niobium ore, red mud, quartz, fluorite and feldspar.

【Application】:Iron ore plant, and other magnetic materials processing.

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?
Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2 FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT”
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7

Magnetic separator Overview
1 Brief Introduction
Magnetic separator is used for wet magnetic separation, separating materials with granularity below 3mm, such as magnetite, hematite, limonite, pyrrhotite, ilmenite. It is also used for deironing of coal, nonmetallic ore, construction industry, etc.Hochang can provide magnetic separator of forward flow, semi counter flow and counter flow types as customers’ requirements. We can provide magnetic separators of forward flow, semi counter flow and counter flow types as customers’ requirements.
2. Structure info.(Including Base Materials)

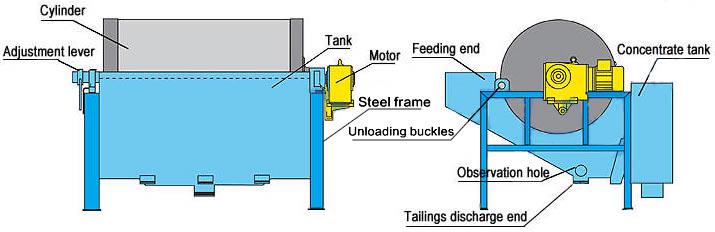

Magnetic separator consists of rotary body, magnetic roller, magnetic system, control panel , transmission device and so on .
Magnetic roller : Permanent magnet
3. Features of magnetic separator

1. The strength of magnetic field is large in the surface of tube;

2. Large wrap angle of magnetic system;

3. The strength of magnetic field is stability;

4 Working Principle of magnetic separator
The pump enters into the mining area of the cell though ore box with the force of water flow. Magnetic particles form into magnetic ball or linkage with the force of magnetic field. The magnetic ball and linkage are absorbed on the drum during they are moving towards magnetic pole with the magnetic force. When the magnetic ball and linkage are rotating with the moving drum, because of alternating polarity and magnetic stirring, the gangue and other non magnetic ore mixed in magnetic ball and linkage is fall down, while magnetic ball and linkage are absorbed on the surface of the drum. These are concentrates we need. The concentrates come to the field where the magnetic is the weakest with the rotating drum. Then they fall in to concentrate slot by the water flow. But the full magnetic roller uses brush roll to discharge ores. At last, the non-magnetic or weak magnetic minerals are discharged out of the cell with plump.

5 Technical parameter of magnetic separator

Model	Shell diameter (mm)	Shell lenght (mm)	Shell rotation speed(r/min)	Feeding size (mm)	Processing capacoty (t/h)	Power(kw)
CTB6012	600	1200	<35	2-0	10-20	1.5
CTB6018	600	1800	<35	2-0	15-30	2.2
CTB7518	750	1800	<35	2-0	20-45	2.2
CTB9018	900	1800	<35	3-0	40-60	3
CTB9021	900	2100	<35	3-0	45-60	3
CTB9024	900	2400	<28	3-0	45-70	4
CTB1018	1050	1800	<20	3-0	50-75	5.5
CTB1021	1050	2100	<20	3-0	50-100	5.5
CTB1024	1050	2400	<20	3-0	60-120	5.5
CTB1218	1200	1800	<18	3-0	80-140	5.5
CTB1224	1200	2400	<18	3-0	85-180	7.5
CTB1230	1200	3000	<18	3-0	100-180	7.5
CTB1530	1500	3000	<14	3-0	170-280	11

6 Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.
