Compound crusher

【Feed Size】:50-100mm

【Capacity】:5-100t/h

【Application】:mining, metallurgy, refractory, cement, coal, glass, ceramics, and electric power industries.

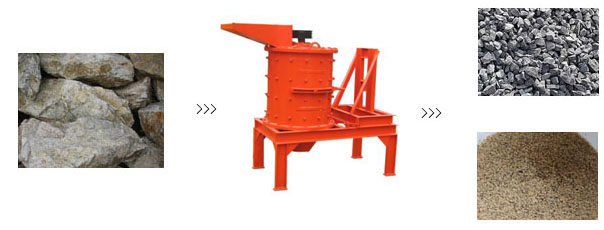

【Introduction】:Compound crusher is widely used in medium or fine crushing of hard or special hard materials as mining ore, cement, refractory, bauxite, carborundum, glass raw materials, etc.

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?

Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2 FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT”
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7

Compround crusher Overview
1 Brief Introduction
The compound crusher can crush large materials, and the discharging granularity can be adjusted at will without the influence of the abrasion of the board hammer and lining plate. It adopts the no-grizzly-bar structure to avoid blocking, which is suitable to crush materials with much moisture and silt content.
2. Structure info.(Including Base Materials)
Compound crusher is mainly combined by transmission device, drum cylinder, main shaft, rotor, hammers, liners and base frame.

NO.	Parts	Material
1	Drum cylinder	45
2	Hammers	High-chromium iron ZG30Cr5
3	Liners	Alloy steel Mn13Cr2
4	Main shaft	45
5	Rotor	45
6	Base frame	Q235

3. Features of Compround crusher

1. Large capacity, higher crushing ratio.

2. Lower energy consumption, excellent tightness.

3. Stable operation, easy maintenance.

4. Working Principle of Compround crusher

Materials fall into the high speed spinning impeller from the top of the machine, and get crashed and crushed at high speed with the other materials spreading around the impeller in an umbrella shape under the high speed centrifugal action. After materials hit each other, they get further crashing, grinding and crushing in eddy current between the impeller and the chassis. Then they are discharged from the bottom barrel, forming multiple closed circuit recycling process. The finished product particle size is controlled by the screening machine.

5. Technical parameter of Compround crusher

Model		800	1000	1250	1500	1750
Rotor diameter (mm)		650	800	1000	1250	1560
Cylinder height(mm)		800	850	850	1000	1410
Main shaft rotation speed (r/min)		1350	970	740	650	600
Feeding size(mm)		50	70	100	100	100
Discharging size (mm)		0-5	0-5	0-5	0-5	0-5
Processing capacity (t/h)		5-15	10-30	20-60	30-80	40-100
Motor	Power(kw)	4P 30	4P 55	6P 90	8P 110	8P 132
Motor	Rotation speed	1440	1440	750	750	750
Dimensions (L×W×H)(mm)		2200×860×1980	2700×1160×2000	2800×1400×2730	3100×1900×2300	3350×2100×2800
Total weight (t)		2.3	4.5	9.73	18.1	26.61

6 Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.

\
